EXPOSED INTERNAL LINING
saveBOARD Exposed pre-finished internal wall & ceiling lining is a unique design feature for any residential or commercial project. The core of the product is made from shredded and compressed composite packaging, which can be seen through the transparent facing sheet. Aesthetically it allows the occupants to see the makeup of the board, while giving the user a sustainable and superior performing product.
It's a durable, moisture and mould resistant wall & ceiling lining ideal for garages, accent walls, industrial spaces, hallways and other high traffic areas. The colour is created from the original consumer packaging by segregating the feed stock into different colours groups on arrival prior to manufacture.
DOWNLOADS:
APPLICATION
-
Pre-finished Interior Wall and Ceilings.
-
Garage lining instead of plywood or plasterboard
-
Suitable for high impact areas as an alternative to plywood.
-
Commercial spaces where wear marks on the surface won't be noticeable due to textured finish.
-
Curved walls and bends down to 150mm radius - requires Kerf cutting of the back face.
-
Material Group 3 fire rating.
-
STC Rating of 30dBA at 10mm thickness board only
-
400mm stud centres to prevent warping of surface.
-
2-4mm gap required between sheets in high humidity zones.
THICKNESS
10mm square edge.
LENGTH - All 1200mm wide
2400mm, 2700mm (3000mm special order)
COLOURS
-
Black
-
Blue
-
White Noise
DESCRIPTION
-
Pre-finished Interior Wall and Ceiling Board.
-
Square finished edges
-
No need to paint, plaster or cover fixings
-
Every board is different, but made from the same feedstock material to provide a consistent blend of colours.
-
Screw anything direct to the surface, no need to find studs.
-
Available in a range of colours and patterns (made from waste) which are dependent on which product being processed.
-
Excellent wind bracing applications.
-
Good mould resistance
-
Water repellent, but not a replacement for bathroom plasterboard.
-
ZERO Water, Glues, Chemicals added. VOC's and Formaldehydes are < 1% of the Green Building Standard (0.004mg/m2/hr)
-
Declare label: Our products have been determined to meet the requirements for all applicable Imperatives of the Living Building Challenge:
-
Embodied Energy calculations have been completed for our products for a 'cradle to gate' life cycle.

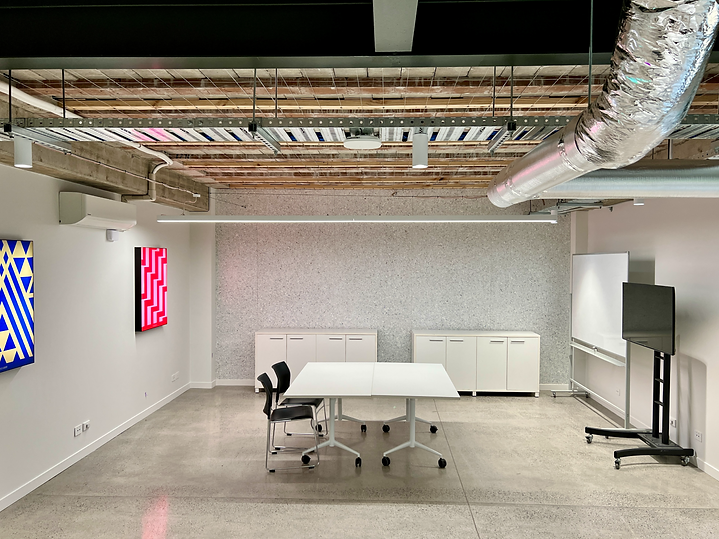

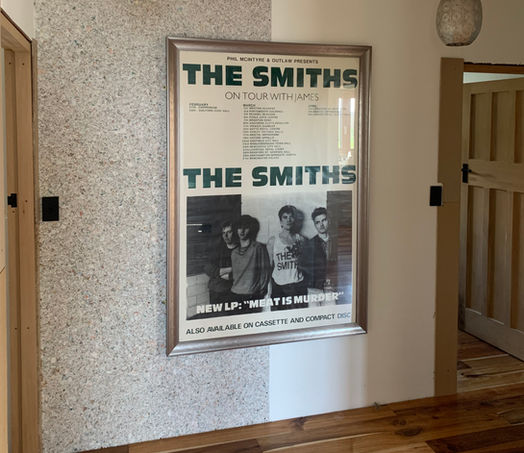

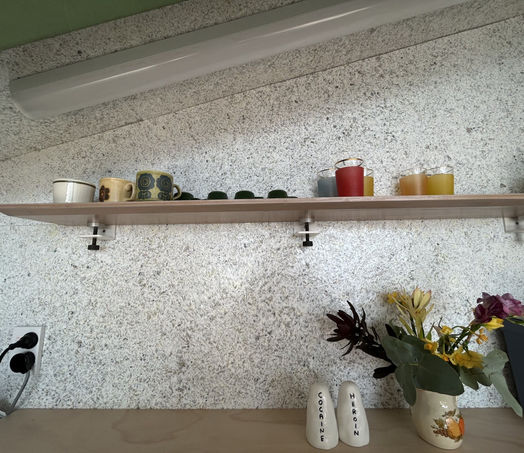

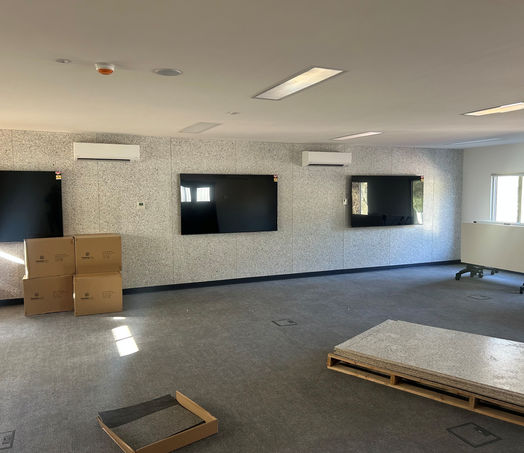

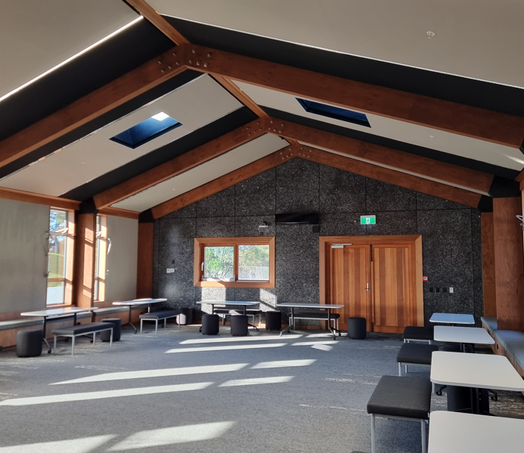

See gallery of different installations below:
COMPLIANCE
saveBOARD is a US proven product with > 15 years in-service history. The product has been successfully tested (in the US) to meet all appropriate International Building Code requirements for Interior Walls and Ceilings. saveBOARD has been used in Australia since 2022.
The documentation attached clearly demonstrates that saveBOARD meets all obligations under Australian Building Code. We have third party experts provide compliance statement (deem to satisfy solution) confirming that the US test certification combined with Australian & NZ testing demonstrates equivalence to Australian Building Code requirements.
